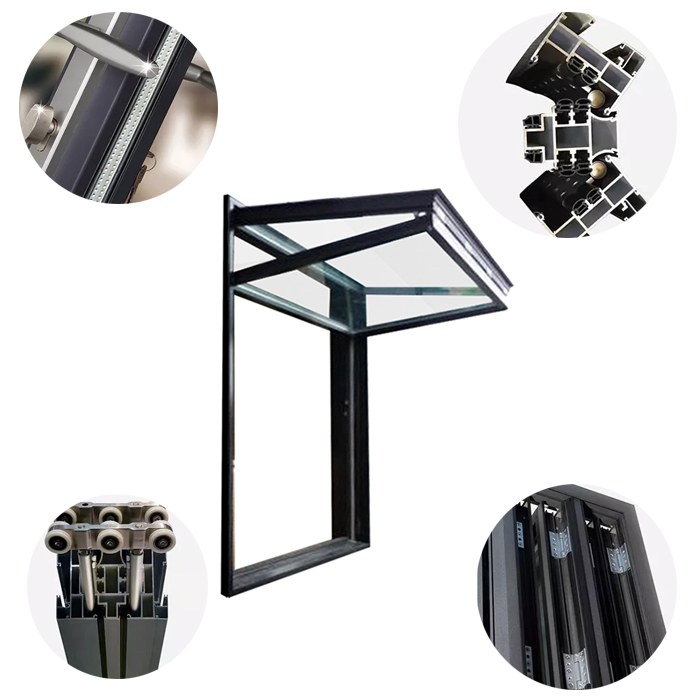

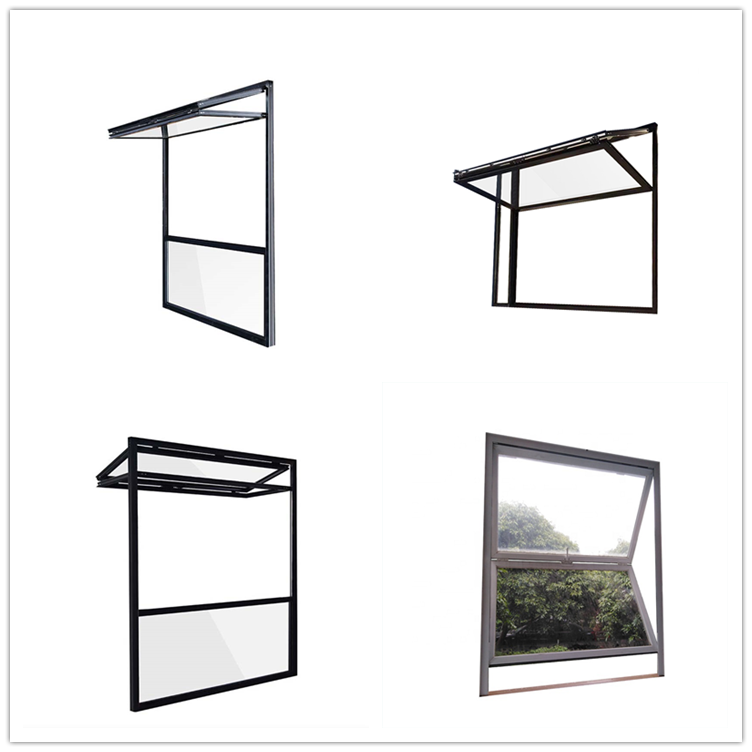

Aluminum Alloy Folding Glass Aluminum Bifold 4 Season Porch Window Fold up Windows

XH-Window-0418-1

Aluminum alloy folding windows have well sealing, heat thermal insulation performance is superior, good airtightness, good watertightness, better security. But the cost is high.

Quantity:

Contact Now

Message Content

Country

Email:info@xhconstruct.com

Name

First Name

1.Product Introduction

Frame Material	Aluminum alloy 6063-T5
Color/Size	Customized
Profile	A. Aluminum alloy, 6063-T5, can be thermal break B. Wall thickness: 1.4- 2.0mm, can be customized C. Surface treatment: anodized, electrophoresis, powder coated, color can be customized
Glass option	A. Single glass: 5,6,7,8,10,12,15,19mm Tempered Glass B. Double glazing: 5mm+ 6/9/12/15/20/24 +5mm Tempered Glass C. Laminated glass: 5mm+ 0.38/0.76/1.52PVB+5mm Tempered Glass D. Tinted/Reflect Glass/Tempered Glass E: Customized
Hardware	A. Made in China B. Made in Germany C. Customized
Mesh	A.Stainless steel security mesh B.Security mesh C.Nylon screen D.Mosquito screen
Application	Villas, large public buildings, hotels, office buildings, business clubs, ect.
surface finish	A.powder coating B.electrophoresis C.heat transfer for wood grain D.Fluorine carbon coating
Package	Heat contracted plastic film/Carton/Wooden packing/Clients' special requirements

2.Product Details

Profiles	Series	1. 6063-T5 high quality thermal break aluminium profiles 2. 6063-T5 high quality non-thermal break aluminium profiles Commonly used series:50mm: 50series max-glass-thickness:22mm
	Thickness	1.4/1.6/2.0mm
	color	Brown dark greylight grey blackstar black,etc.
Glass	Types	Low-e glassfrosted glazing grey/blue/green tinted glass,etc. 1.Single:3mm~12mm 2. Double: 5mm 6A 5mm/5mm 9A 5mm/6mm 9A 6mm, etc. 3.Triple: 5mm 6A 5mm 6A 5mm and others 4.Tinted/Reflected/Frosted Glass (Tempered Glass)
	Thickness	4-19mm
	color	clear/super clear/ tinted blue/green/coffee brown/gray

Shreshold	Low:13.31mm-24mm Higher:35mm-50mm
Folding Way	Odd or Even Number Folding
Hardware	Brand:Germany brand (Siegenia /Roto )Australia brandChina brand Aluminum alloy round windows accessories combination: Accessories combination: handle + lock catch + hinge +EPDM sealing strip
Mesh	Stainless steel security meshAluminium security mesh Fiberglass flyscreenRetractable flyscreen
Finish	Powder coating Anodized Electrophoresis Wood grainSliver& ChampagnePVDF
Advantages	1. Big opening area and save indoor space. Good air mobility, good daylighting. 2. Well sealed, heat thermal insulation performance is superior, good airtightness, good watertightness, better security. But the cost is high. 3. Adapt to different buildings and places, with various colors, high strength, acid and alkali resistance, 4. corrosion resistance, long service life, good thermal insulation, simple installation, high, medium and low quality products can be selected.

3.Profile Details

Product Name	Motorized glass Pergolas System
Material	aluminum , tempered glass
Color	white / black, customer's requirements.
Grade	Electric products
Thread	glass (4+4 mm; 6+6; 8; mm) thick tempered laminated glass

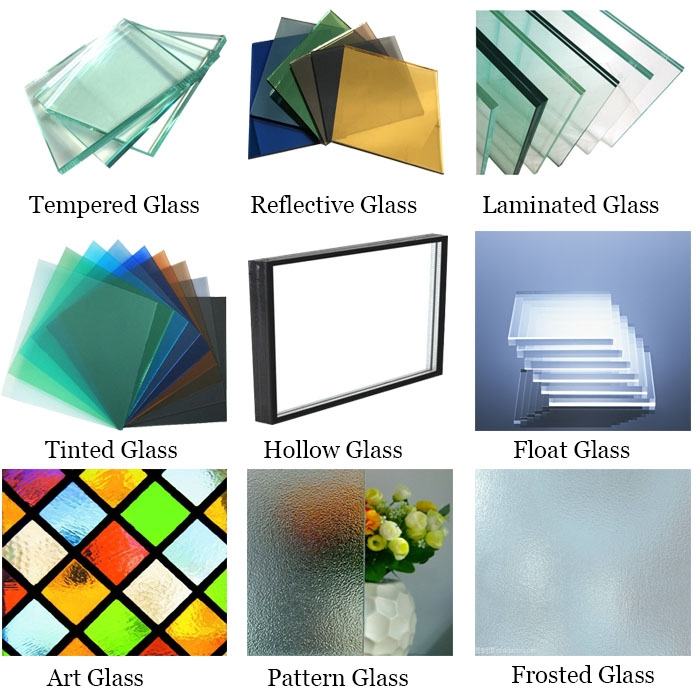

4.Glass Details

Glass

Types

Float Glass/ Glass/ Tempered Glass/ Color Glass/ Tinted Glass/ Pattern Glass/ Reflective Glass/ Art Glass/ UV Printing Glass/ Film Glass/ Gray Glass/ Black Glass/ Blue Glass/ Green Glass/ Double Glass/ Double Tempered Glass/ Laminated Glass/ Double Glazing/

Thickness

3mm/4mm/5mm/6mm/8mm/10mm/12mm/6.38mm/8.38mm

/10.38mm/10.76mm/12.76mm/11.14mm/5mm+6air+5mm

/5mm+9air+5mm/5mm+12air+5mm/6mm+6air+6mm

/6mm+9air+6mm/6mm+12air+6mm

color

clear/super clear/ tinted blue/green/coffee brown/gray

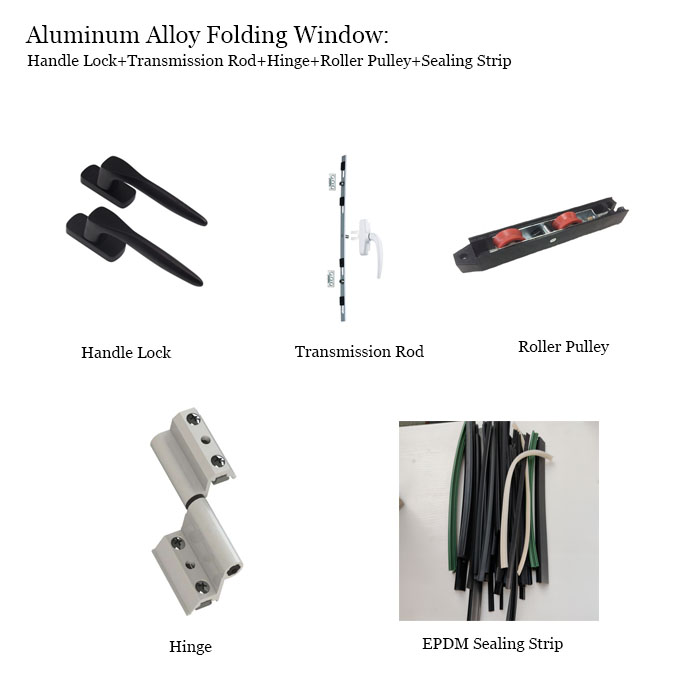

5.Hardware Accessories

Handle Lock+Transmission Rod+Hinge+Roller Pulley+Sealing Strip

6.Product Parameters

Item	Parameter	Item	Parameter
Airtightness/m3/(m2.h)	≤0.5	Profile Width/mm	50-135
Watertighness/Pa	≥700	Transmittance	60%-98% up to glass type
wind pressure/KPa	≥5.0	Fire-proof level	AAAAA

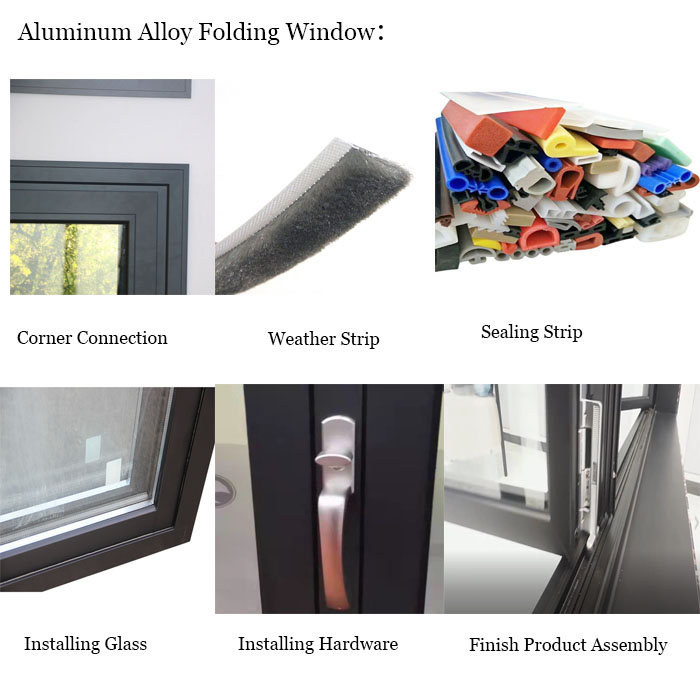

7.Processing Procedure

Aluminum alloy floding window:Cutting profiles-assemb profiles-install hardware-pack glass-EPDM sealing strip-sealant-finish product assemble
